NEW! NICE Titan HS TTN3724HS Double Leaf Swing Gate Operator
Shop By Categories
NEW! NICE Titan HS TTN3724HS Double Leaf Swing Gate Operator
SKU:
TTN3724HS
Nice
$ 1,591.00
Secure Payment
Details
NEW! Nice Titan HS TTN3724HS Double Leaf Swing Gate Motor Kit
Surface mounted for swing gates with leaves up to 3.7 m or 450 kg.
Benefits and features:
- Compatible for operation with Solemyo system.
- Patented layout of the internal components: fewer moving parts means greater reliability and quiet operation.
- Easy to install: after the gear motor has been assembled, all electrical connections are made from above.
- Reliable: the magnetic encoder ensures the safeguard of set values over time and precise obstacle detection
- Easy to Install: electrical connections easily accessible from above, thanks to the dedicated access. Fixing brackets are supplied with the motor.
- Versatile: the motor can also be installed in the bottom part of the gate leaf, at a distance of at least 110 mm from the ground
- Simple programming, by means of a single key
- Automatic memorization of limit switches on opening and closing with self-learning functions
- Automatic fault diagnostics
- Programming of pause time
- Pedestrian pass door
- Deceleration of opening and closing
- Obstacle detection with dual technology
- Operation in event of power failure by means of optional rechargeable batteries (PS324)
- Provision for connection of latest generate resistive sensitive edges
Specifications:
- Model: TTN37247HS Non-Reversible
- Power Supply: 24 Vdc
- Absorption: 6 A
- Power: 150 W
- Speed: ~0.032 m/s
- Force: 1900N
- Work cycles: Continuous
- Protection Level: IP54
- Working Temp: -20°C to +50°C
- Dimensions: 910 mm × 105 mm × 170 (h) mm
- Weight: 8kg
- Max Swing gate leaves: 3.7m
- Max Leaf Weight: 450 kg

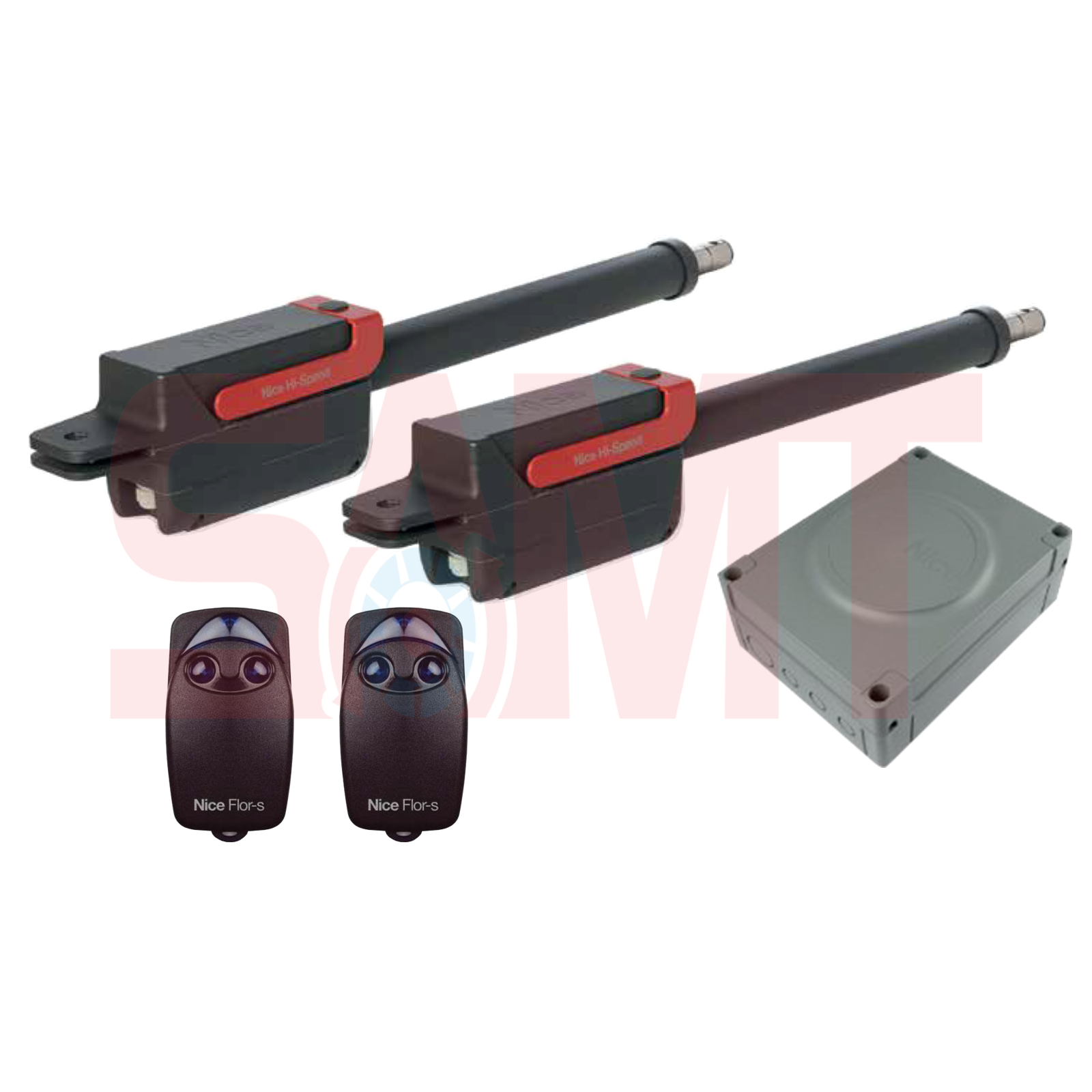

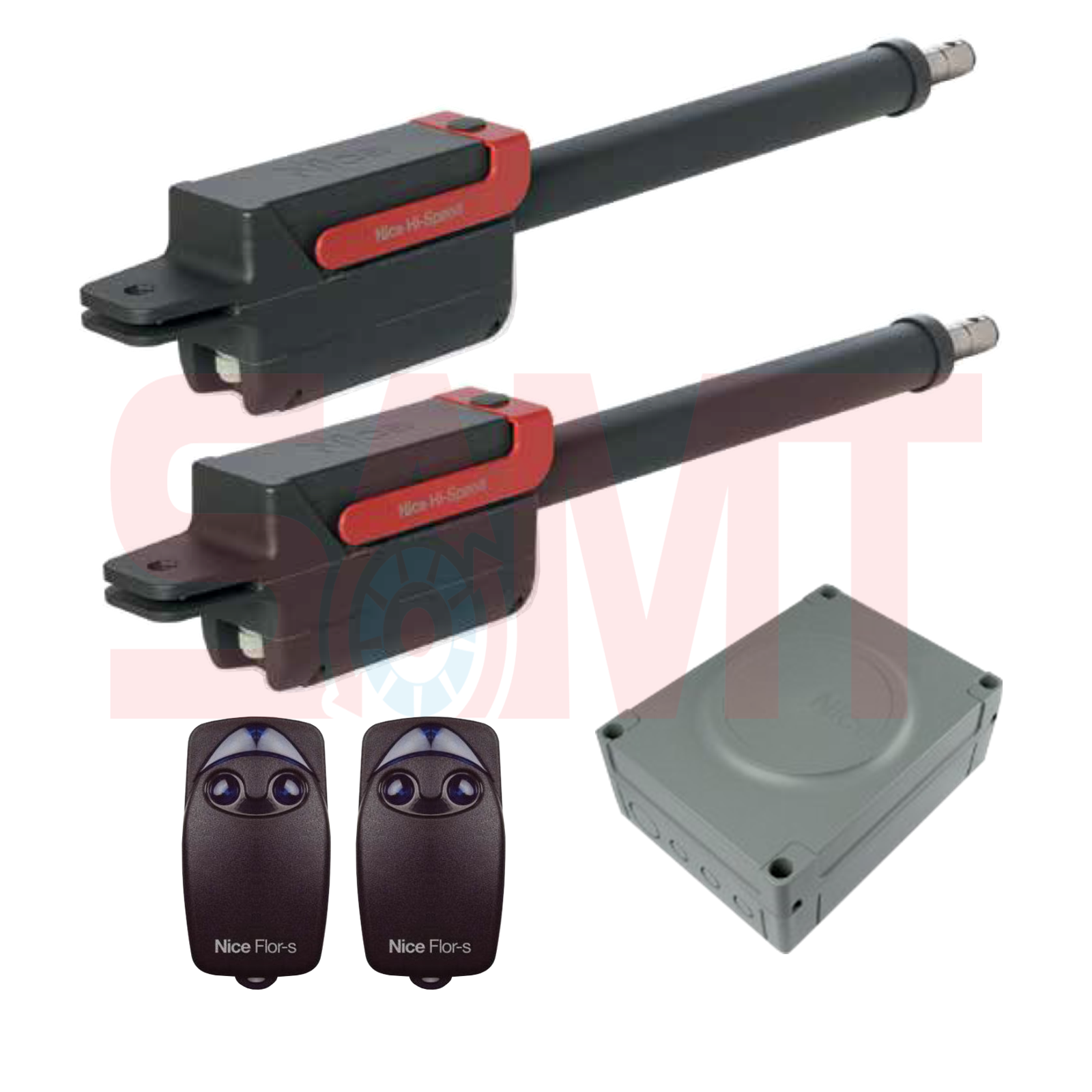

Kit Contains:
- TTN3724HS – 2 x Swing Gate Operator

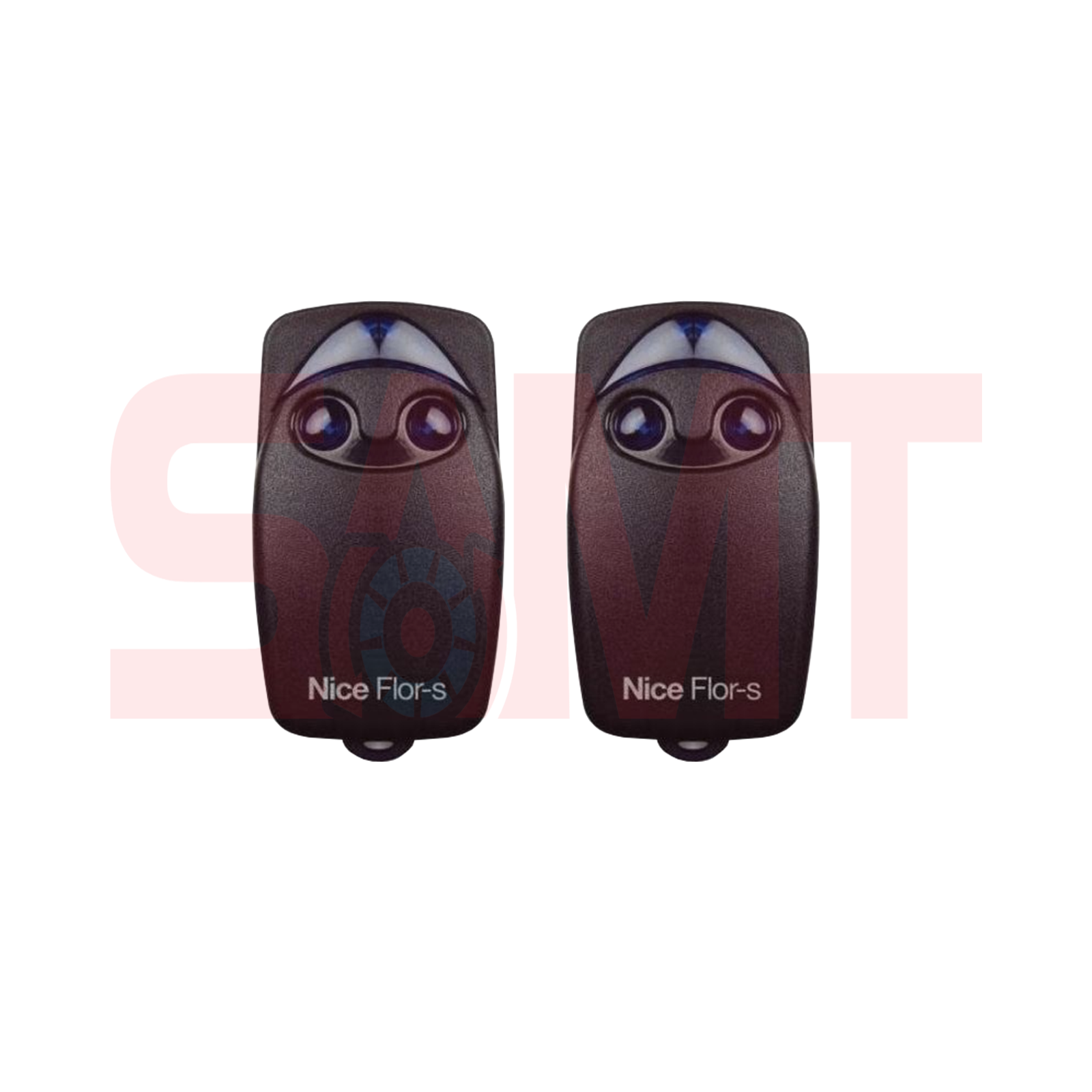

- FLO2R-S – 2 x transmitter 433.92 MHz, 2 channels.

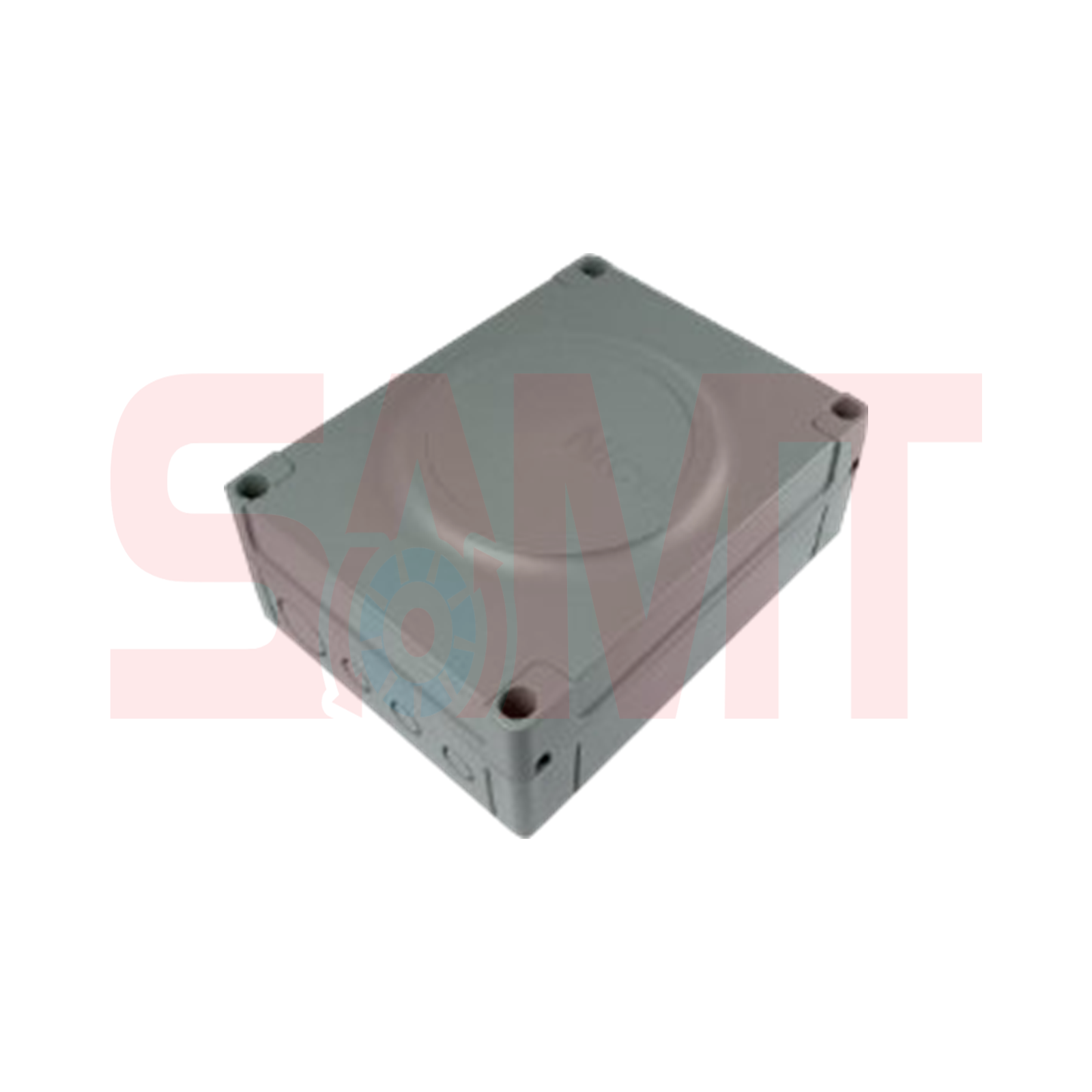

- MC824H – 1 x control unit with SMXI plug-in receiver
- 1 x Mounting Hardware
