LIFE ERGO ER4 UNI DL Double Underground Swing Gate Opener Motor Kit
Shop By Categories
LIFE ERGO ER4 UNI DL Double Underground Swing Gate Opener Motor Kit
Life
$ 1,690.00
Secure Payment
Details
Fast irreversible gear motor, grease lubricated, with mechanical opening and closing stop. Pre-cabled wires.
DIY
All LIFE motors all work off the smart board specially designed to create a simple and elegant installation process. The smart board is specifically engineered to simplify the programming procedure to just one button!
Features:
- For gates up to 3m and 700kg in weight
- Underground installation
- The release mechanism is perfectly protected from water and soil infiltrations
- Gear motor case – Die-cast and varnished with epoxy powders
- Foundation box – made in galvanized steel with a copper ingredient to help it preserve through time

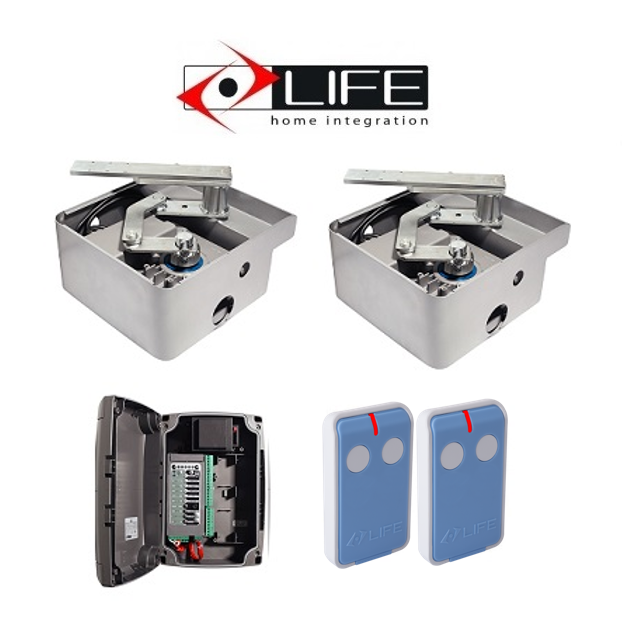

Kit includes:
- 2x ERGO ER4 UNI DL Operators
- 1x Control unit
- 2x Transmitters
Technical Specifications
| Model | ER4 UNI |
| Max weight wing (kg) | 700 |
| Max length wing (m) | 3 |
| Motor supply (V) | 230V a.c. |
| Power (W) | 350 |
| Torque (Nm) | 400 |
| Lubrication (Tip) | Grease |
| Thermal cut-out (°C) | 140 |
| Working temperature (°C) | -20 +70 |
| Protection level (IP) | 67 |
| Time for 90° cycle (s) | 18 |
| Intermittence work cycle (%) | 35 |
