ML 5102 has been replaced by the ML6102

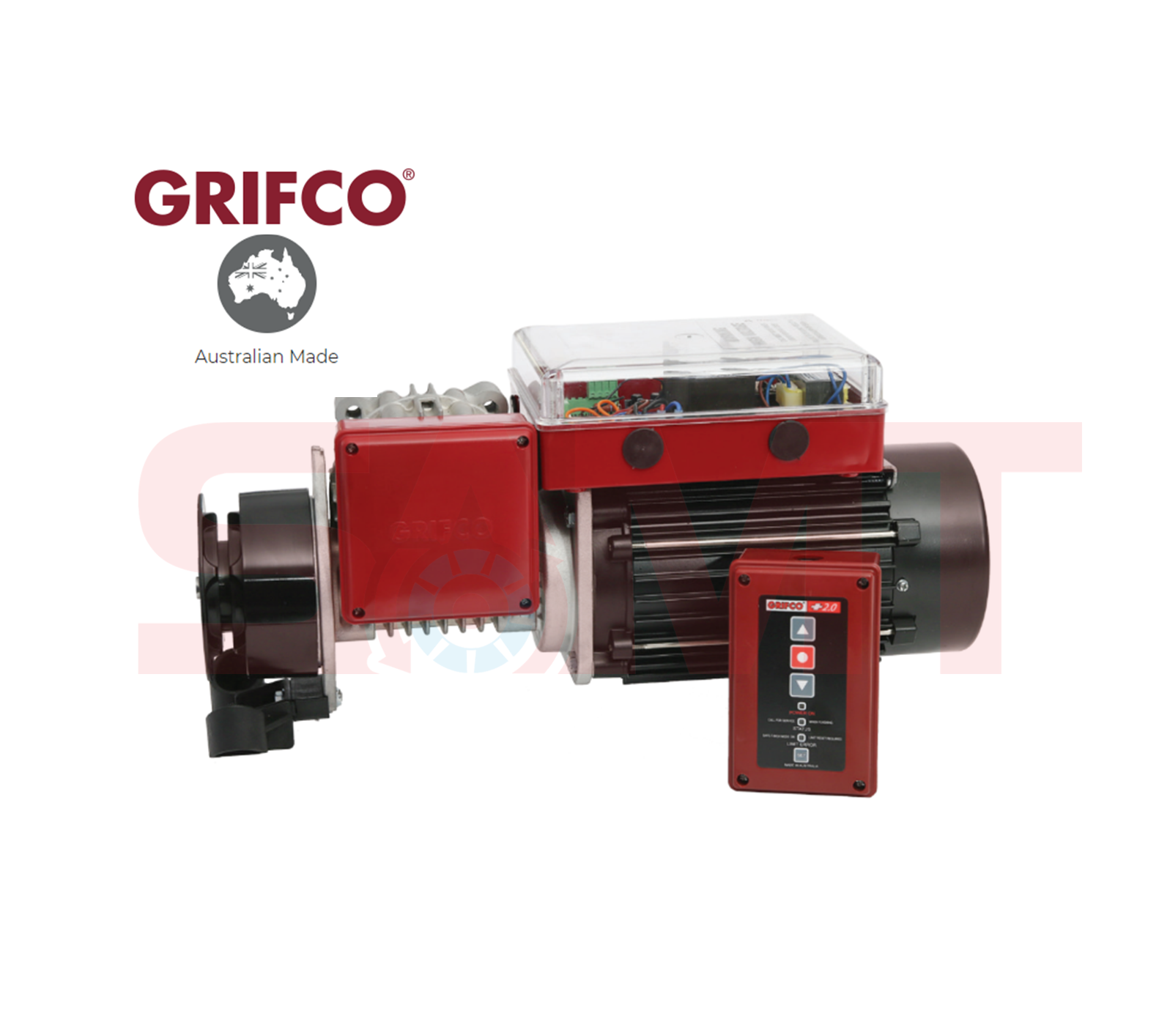

Grifco ML5102 eDrive +2.0 Operator | Low Cycle | Single Phase 240V
The Industry-Leading Operator for Spring-Balanced Roller Shutters and Grilles
The eDrive +2.0 is the industry-standard for quality, durability, adaptability and intelligence. With numerous models to select from (depending on door size and cycles) as well as multiple expansion options the eDrive +2.0 is the logical choice for automating spring-balanced roller shutters and grilles.
Key features
- Powerful range of motors with purpose designed gearbox for durable, reliable operation
- Intelligent logic system for exceptional adaptability and integration into the building ecosystem
- Optional expansion board for advanced functionality
- Automatic chain-engage mechanism for safe and easy manual operation in the absence of power
- Absolute Position Encoder for relaible door positioning and improved safety. Motor is disconnected the instant the manual hand chain is engaged
What’s in the Box?
1 x Grifco ML5102 eDrive +2.0 Operator (L/H or R/H), 1 x C10A-4 Wall Control, Mounting Hardware
Specifications
Power: 240V Single Phase
Motor: 0.75kW (1.0HP)
Amps: 6.0A
Max. Door Size: 36m2
Ip Rating: IP44
Duty: Low Cycle
