Genius Falcon M20 Slide Gate Motor Kit Replaces 20C
Electro-mechanical gear motor range for heavy sliding gates up to 2000 kg. It has a compact design which is sturdy, safe and quiet with a magnetic limit switch and an integrated control board with an easy to use programming display.

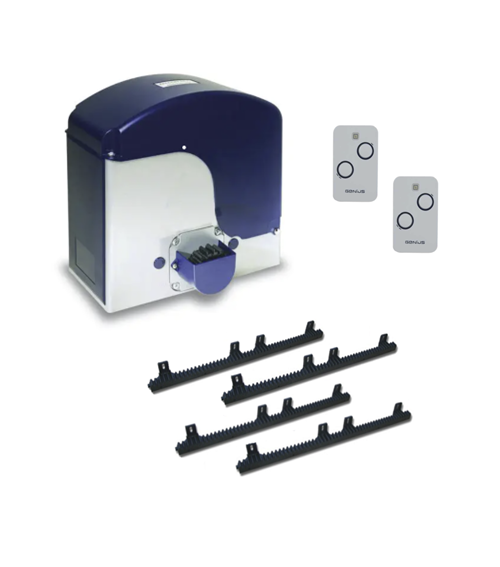

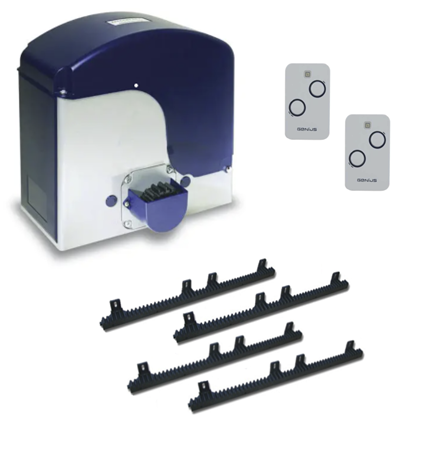

Kit Contains:
– Genius Falcon M20 Slide Gearmotor
– 2x Genius Echo Remote Transmitters
– 4.0m Nylon Steel-reinforced gear rack
Features and Benefits:
FALCON are non-reversible electro-mechanical gear motors that are made to last. The gear motor body is aluminium painted with polyester powders and the
protective housing in ABS make it a solid and safe product.The practical release system can be activated by a lock with personalized key. Magnetic limit-switch designed by Genius, entirely protected. The gear motors have a pre-wired board with transparent protection and programming push-buttons outside the cover, as well as a rotating board-support
to facilitate access during programming. The “C” versions, with Genius control board, have easy-to-understand on-display
programming. Functions such as an electronic clutch, slow-downs, braking and separate inputs for accessories put the Falcon at the top of the market.
Irreversible – As the gear motor is non-reversing, no electric locks need be installed and, in the event of power failure, the release device (protected by a customized key) makes it possible to open and close manually.
Technical Specifications:
| Model | 20M |
| Power Supply | 230V-50Hz |
| Absorbed Power (W) | 800 |
| Absorbed Current (A) | 3.5 |
| Electric Motor (rpm) | 1400 |
| Thrust Capacitor | 20 |
| Thrust On Pinion | 150 |
| Torque | 45 |
| Temperature Protection | 140 |
| Max Leaf Weight | 2000Kg |
| Type Of Pinion Gear | Z 16 Module 4 |
| Gate Speed | 10 |
| Gate Max Length | 20m |
| Type Of Travel Limit Device | Magnetic |
| Type Of Clutch | Electronic Torque Control |
| Use Frequency | 40% |
| Operating Ambient Temperature | -20 To 55 Degrees |
| Weight Of Gear Motor | 15Kg |
| Protection Class | IP44 |
