No longer available for 240V Swing Gates. See Genius Brain 15 for 24v Motors.

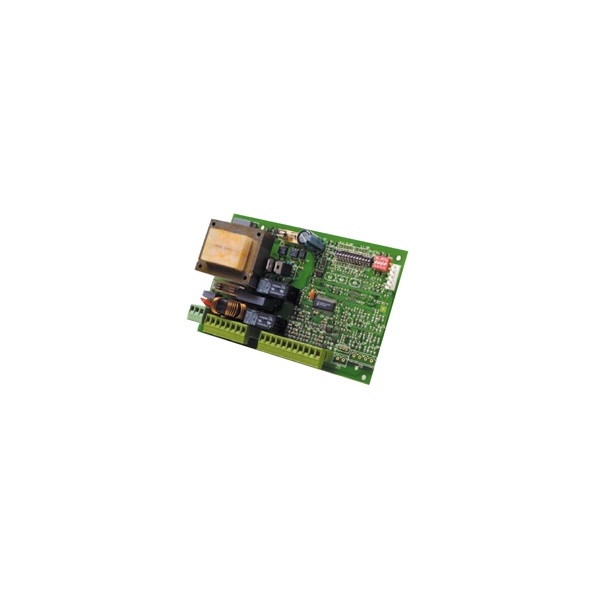

Genius Brain 574 Control Board (for 240V swing gates) JA574
Brain 592 is a 230v control board for swing gates.
*Requires the Enclosure JA320
Technical Specifications
| Power supply (Vac) | 230 (+6% -10%) 50Hz |
| Absorbed power (W) | 10 |
| Max. motor load (W) | 800 |
| Accessories max. load (mA) | 500 |
| Electric lock max. load (VA) | 15 |
| Operating ambient temperature (°C) | -20 +55 |
| Protection fuses | 2 |
| Function logics | Automatic/Semi-automatic/Safety/Semi-automatic B/Manned C/Semi-automatic “Step by step” |
| Opening / closing time | Programmable (from 0 to 120 sec.) |
| Pause time | 0, 10, 20, 30, 60, 120 sec. |
| Closing leaf delay | 0, 5, 10, 20 sec. |
| Opening leaf delay | 2 sec. (can be excluded per dip-switch) |
| Thrust force | Adjustable per dip-switch on 8 levels for each motor |
| Terminal board inputs | Open/Open free leaf/Stop/ Opening and closing safety devices/Power supply + earth |
| Terminal board outputs | Flashing lamp/Motors/Accessories power supply 24Vdc/Failsafe |
| Quick-? t connector | Genius 5PIN receivers |
| Selectable functions | Logics and pause time/Thrust force/Opening and closing leaf delay/Reversing thrust/
Failsafe/Closing safety device logic/Pre-?ashing |
| Programming key | Simple or Complete work times learning (independent worktimes plus slow-downs at opening and closing) |
