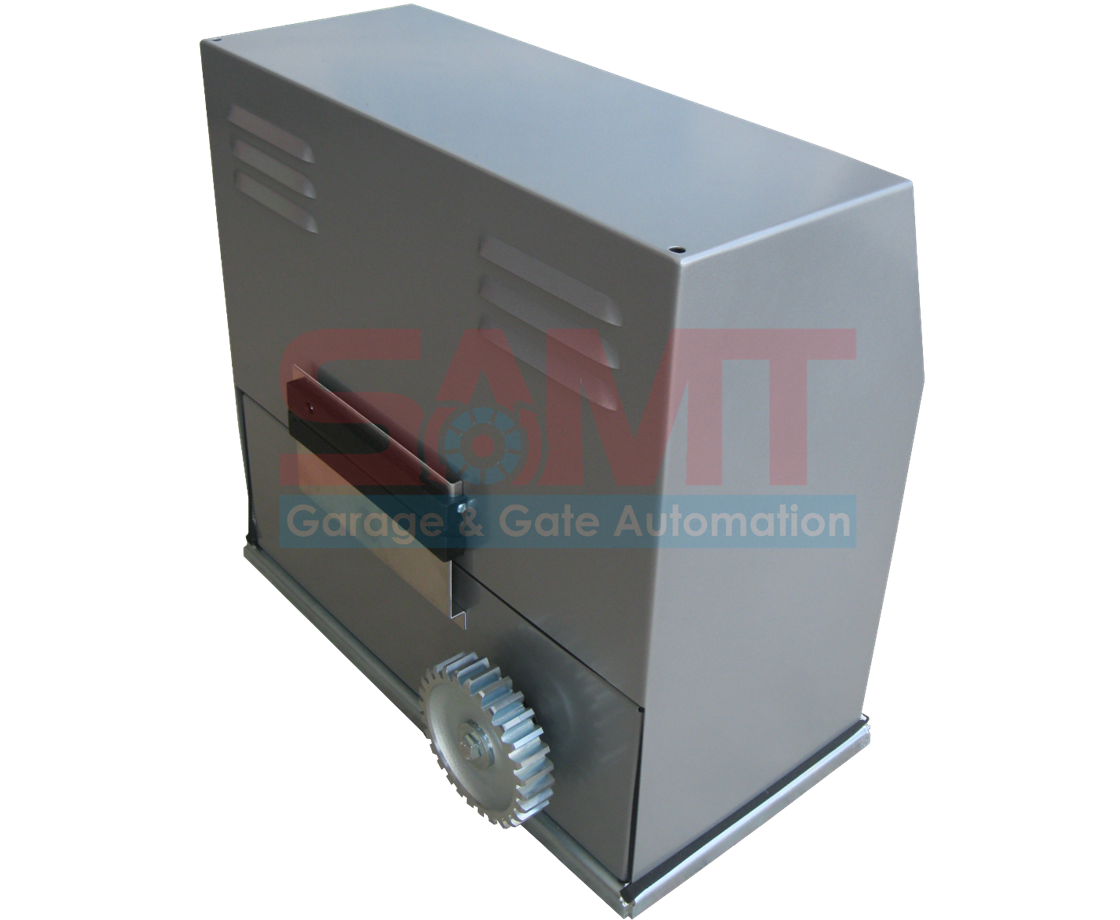

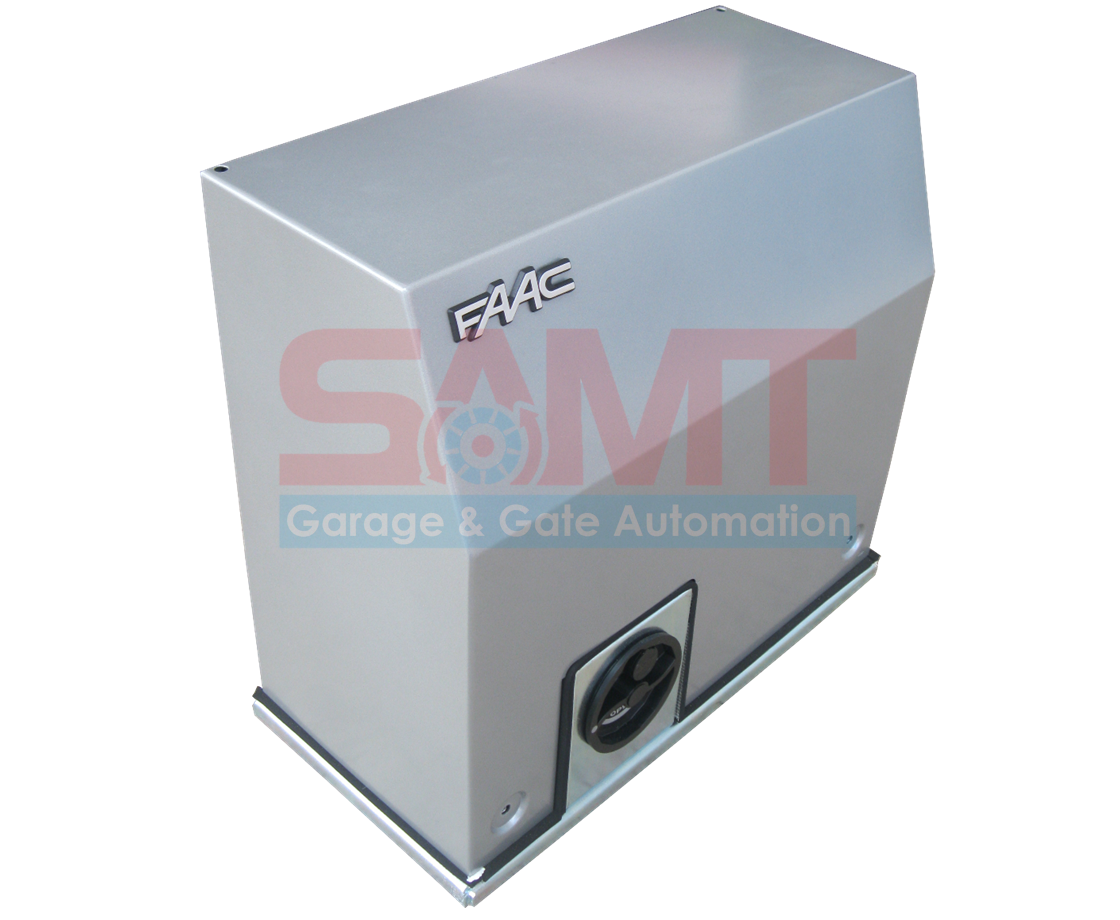

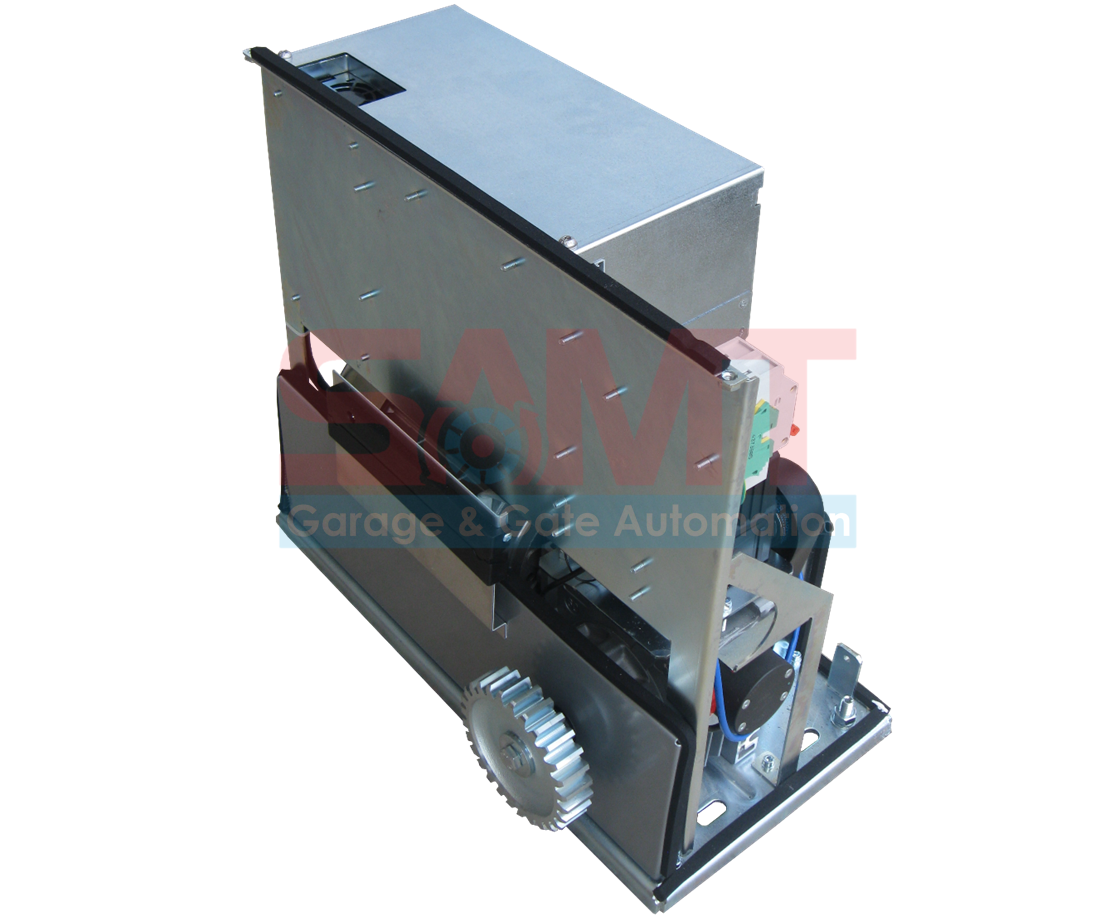

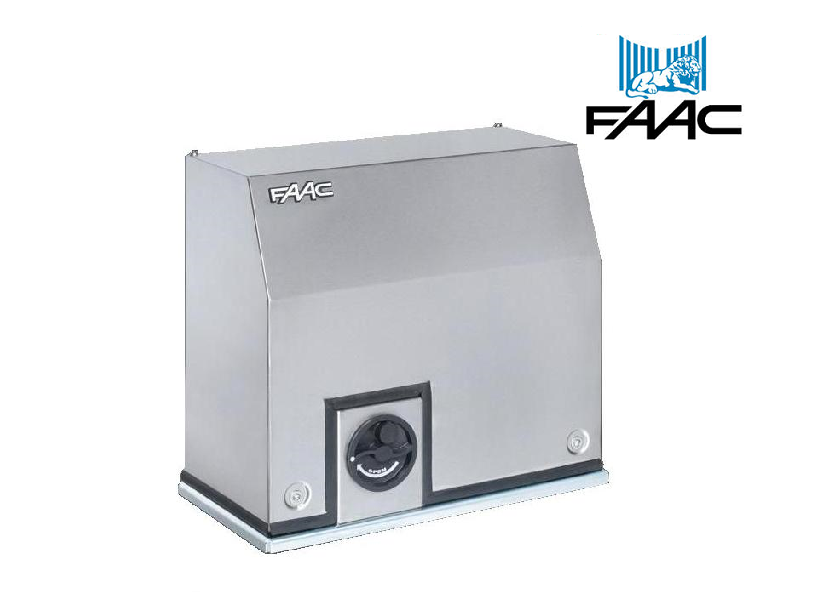

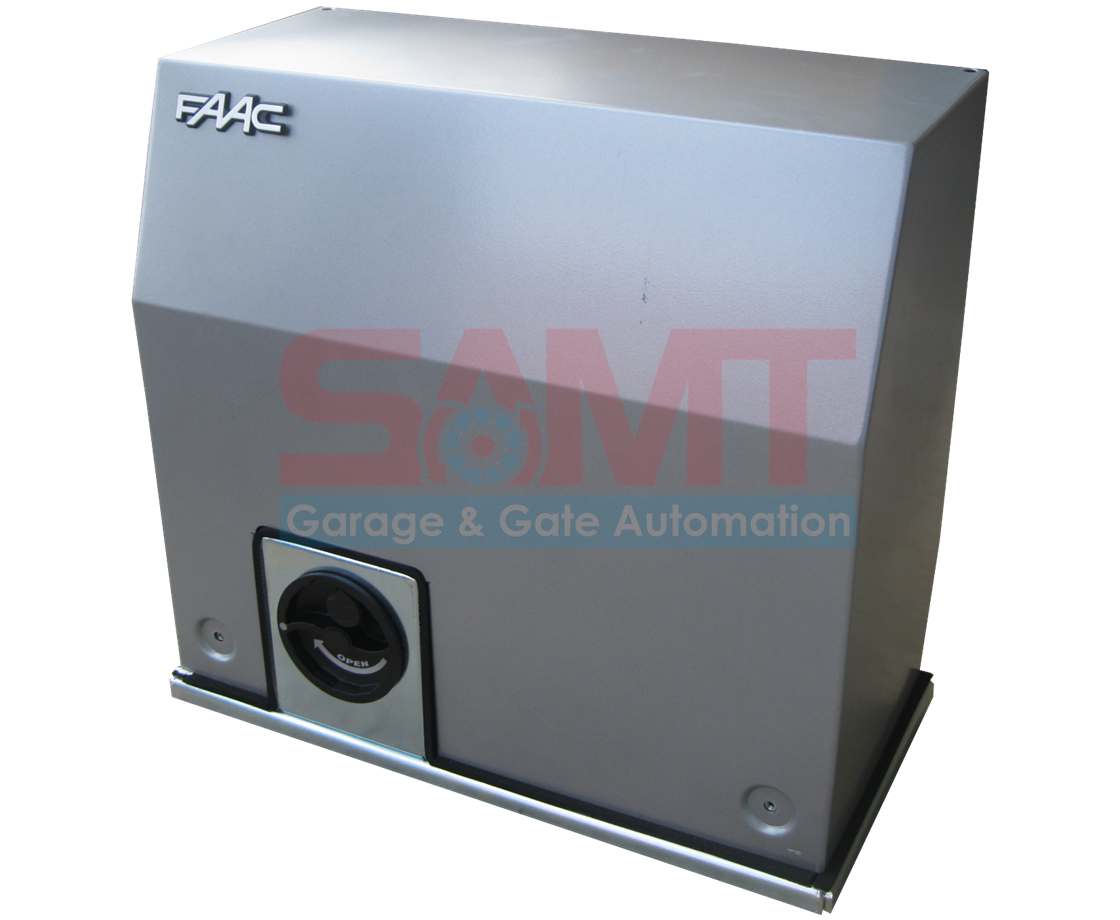

FAAC C851 Slide High-Speed Gearmotor
Shop By Categories
$ 4,358.31
Secure Payment
Details
FAAC C851 Slide Gearmotor
- For sliding gates weighing up to 1800Kg, with speed (adjustable) up to 0.7 m/s recommended maximum length of 20 m
- Ideal for special applications where fast operation is required and a continuous service (100%) such as, for example, prisons, embassies, sensitive places.
- Irreversibility guaranteed by integrated electric brake on the powerful geared motor 1.1KW
- Programming of the speed with integrated frequency inverter

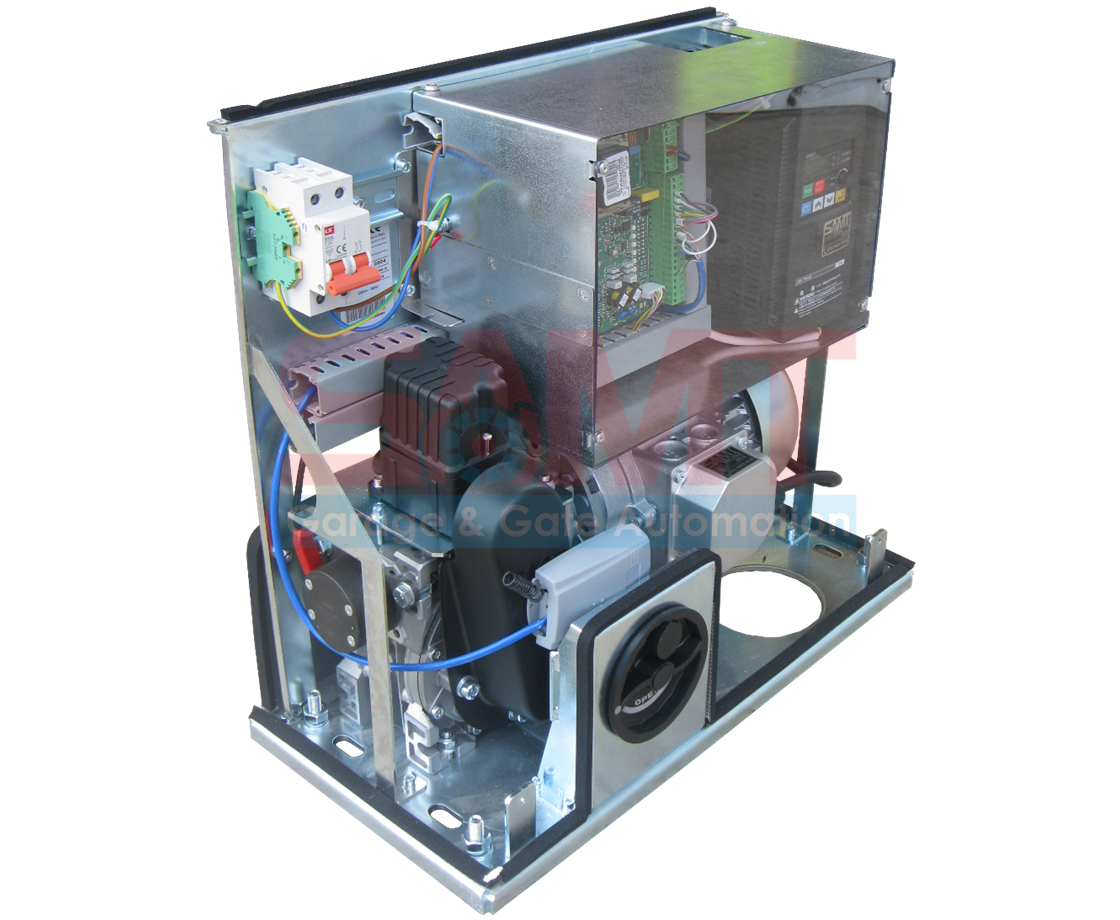

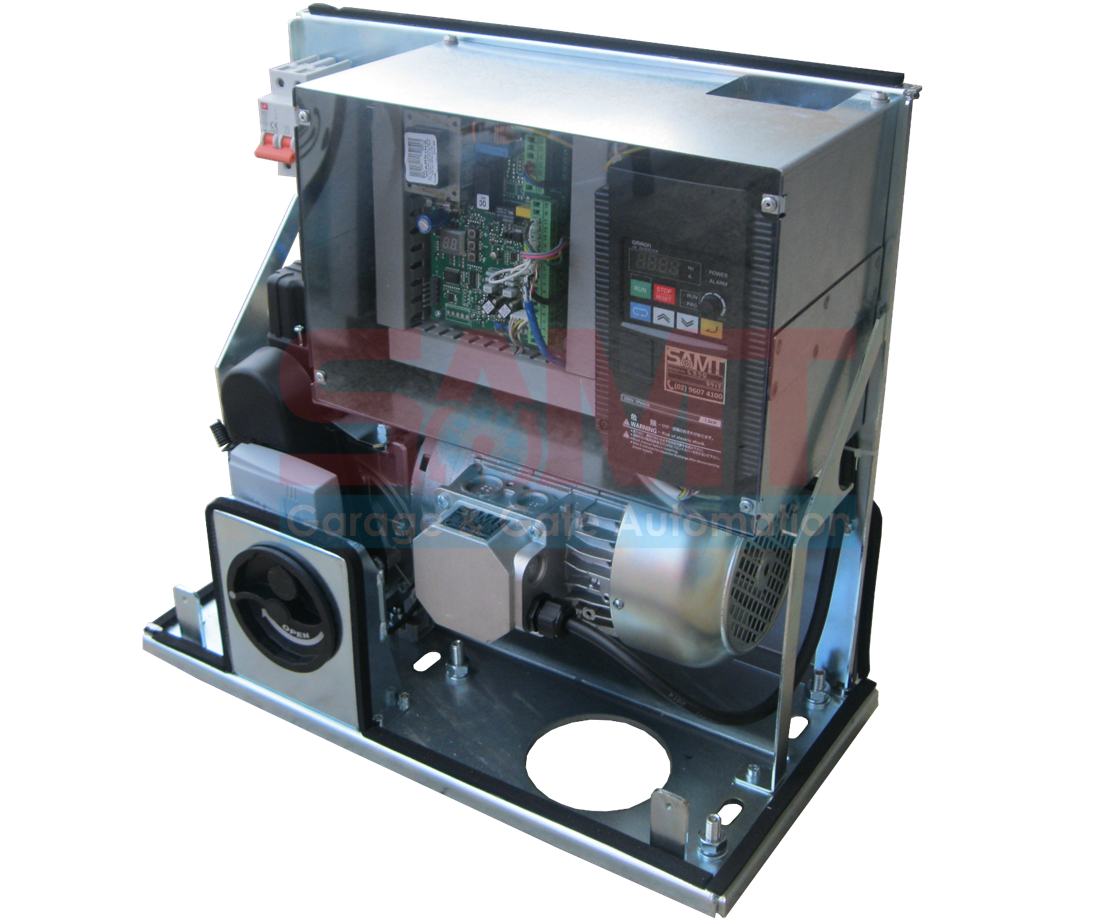

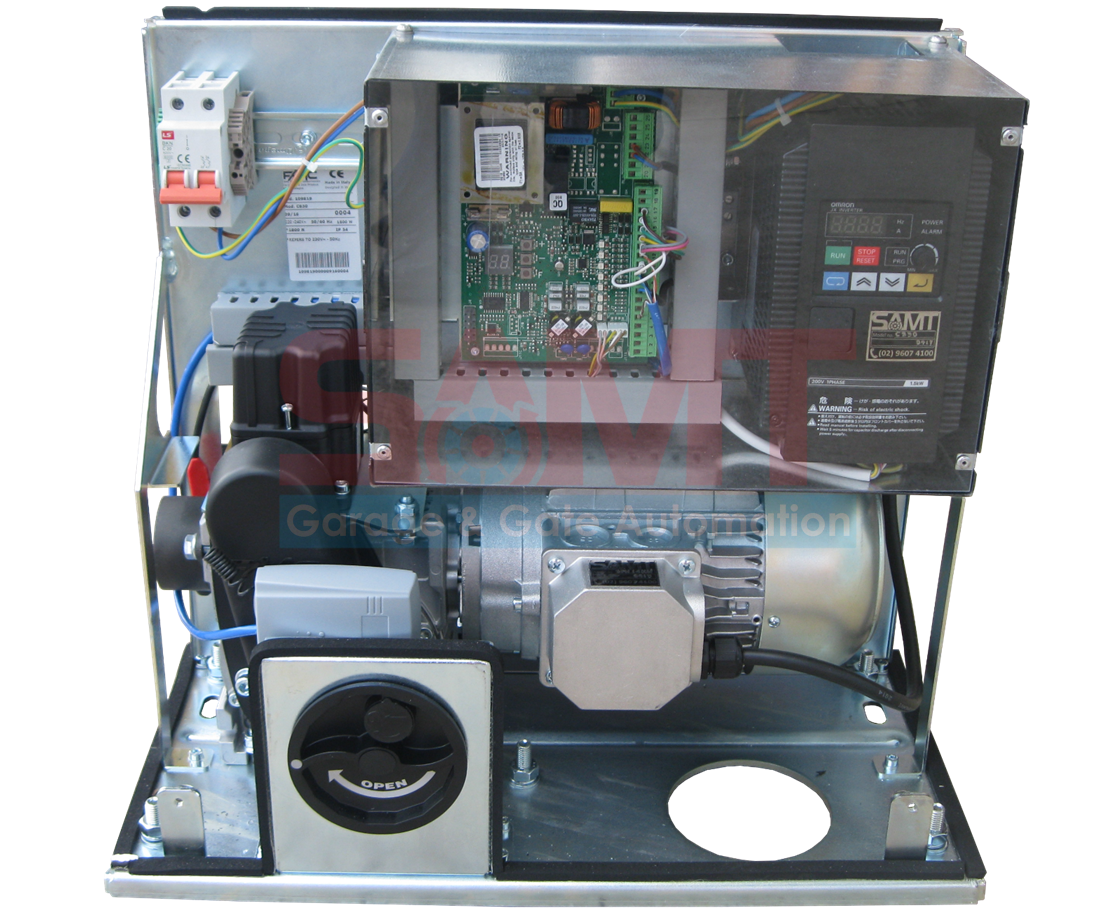

- Electronic built-protected in a metal container and transparent plastic cover.
- Micro deceleration start and limit switches integrated into the motor and adjustable (does not require feedback on the gate)
- Cover in steel with protective zinc primer and polyester powder coating
- Release device manually operated from the outside operator with coded key
- Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.
Optional Accessories
– Keypad
– Receiver
Specifications:
| Gate Max Weight | 1800 kg |
| Power Supply Voltage | 230 Vac 50Hz |
| Absorbed Power | 1800 W |
| Type of motor | 1.1kW with oil lubrication |
| Pull and Push | 1800N (Z28 module 4) |
| Drive Torque | 168 Nm |
| Max Recommended length of the gate | 20 m |
| Gate Speed | 20 to 40 m/min |
| Max interter | 1.5 kW |
| Adjusted Speed and Engine Control | By Inverter |
| Limit Switch | 4 Built-in Mechanical |
| Operating Ambient Temperature | -20°C to +55°C |
| Motor Weight | 49 kg |
| Class Protection | IP54 |
| Dimensions (W×D×H) | 510×295×467 mm |
| R.o.T | CD Continuous Service |
