	740D
Power supply voltage	220-240V~ 50/60 Hz
Max. power	10 W
Motor max power	1.000 W
Max. accessories load	0.5 A
Programming	3 keys (+, -, F) and display, “basic“ and “advanced“ mode
Operating logic	Automatic/”Step by step” automatic/Semi-automatic/Safety/Semi-automatic B/ Manned C/ Step by step semi-automatic /Mixed logic B+C
Programmable functions	Function logics, Pause time, Thrust force, Gate direction, Torque at initial thrust, Brake, Failsafe, Pre-flashing, Indicator light/Timed output, Logic for safety devices at opening and Closing, Encoder (optional) for anti-crushing electronic safety device, Deceleration control and partial opening, Decelerations, Partial opening time, Work time, Service request, Cycle count
Work time	Programmable (0 to 4 min.)
Pause time	Programmable (0 to 4 min.)
Thrust power	Adjustable on 50 levels
Terminal board inputs	Open, Partial Open, Opening safety device, Closing safety device, Stop, Edge, Power supply + earth
Terminal board outputs	Flashing light, Motor, Accessories power supply 24V – Indicator light 24V / Timed output-Failsafe
Rapid connector	5-pin fitting for Minidec cards, Decoder or RP receivers,Opening and closing limit switches, Encoder (optional)
Protection Fuses	2
Operating ambient temperature	-20°C ÷ +55°C

Commercial Industrial

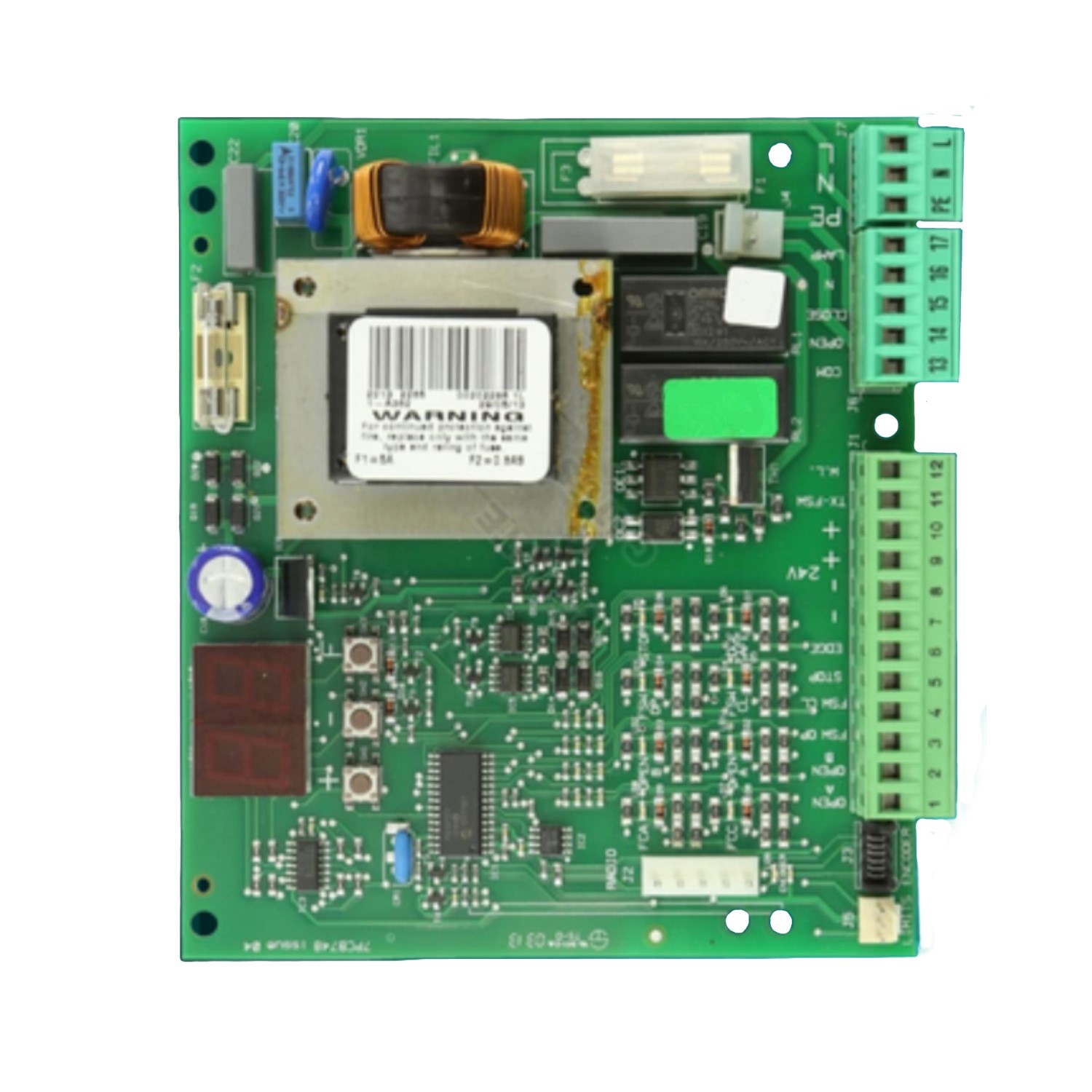

FAAC 740D Control Board for FAAC 740 Sliding Gate Motor
