Electromechanical arm operators for collective/industrial swing gates LIVI 502 is the range of collective/industrial swing gate articulated arm motors for leaves up to 4m and 400kg.

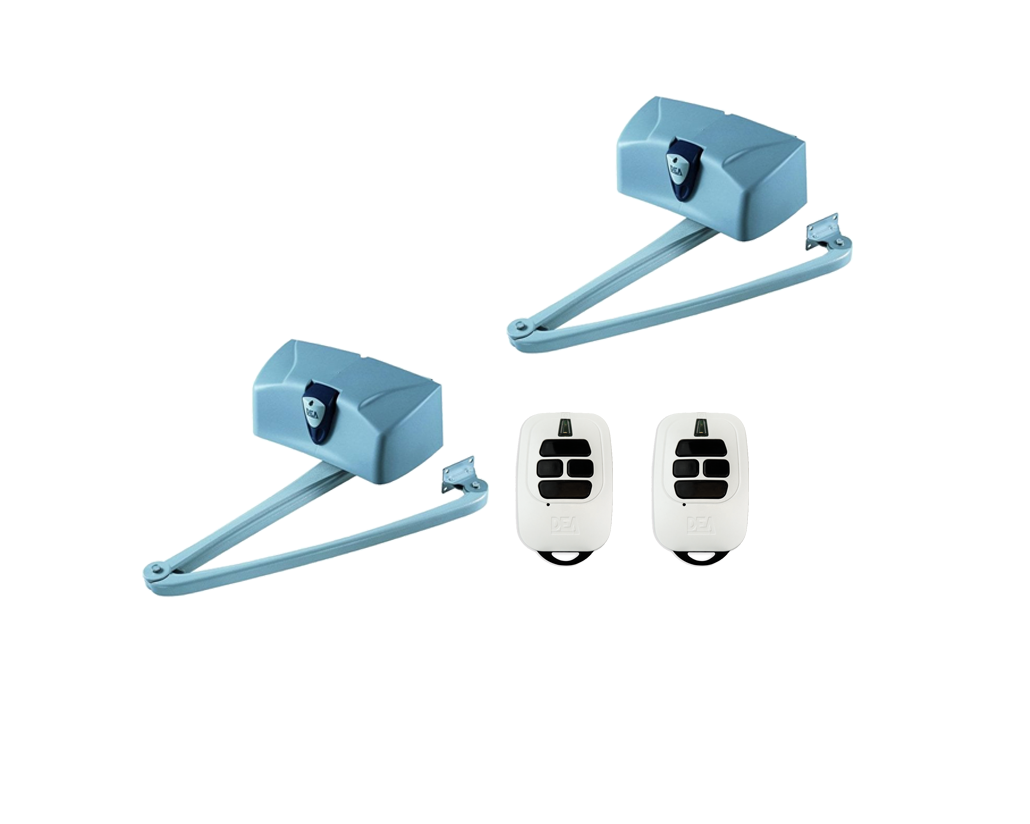

Kit Contains:

2 x Swinger Motor

2 x Remotes

Power	80W
Weight (kg)	13.2
90 Degree Opening Time	10s
Protection Level	IP44
Motor Voltage	24V DC
Working Temp	-20°C to +50°C

TECHNICAL INFO	502
Motor power supply (V)	24v
Maximum power absorption (W)	80
Max torque (Nm)	180
Duty cycle (cycles/hours)	35
N. Max cycles in 24h.	140
Operating temperature(°C)	-20 + 50
90° Opening Time (s)	10
Weight with packing (Kg)	13.2
Sound pressure (dBA)	< 70
Protection level	IP44
