The D10 uses a battery-driven high-torque 24V DC motor, coupled to a robust gearbox to provide an access automation system that is quick, powerful and battery backed up – perfect for industrial and commercial applications where heavy gates are installed.

Easy to set up and easy on the eye, the D10 has everything you’d expect from . Add an LCD controller that can monitor diagnostics and set any function at the touch of a button and you’ll understand why you won’t need another gate motor for a long time.

Main Features:

– Battery backup

– Intelligent speed control

– High duty cycle capability

– Smooth acceleration and deceleration

– Multiple operating features, including Intruder-detection Alarm Modes (a world first).

– Exceptionally easy system setup via LCD user interface

– Onboard code-hopping multichannel receiver with selective add and delete

– Integrated ChronoGuard timer functionality (a world first).

– Be alerted of gate activity via SMS by connecting a GSM device (available separately).

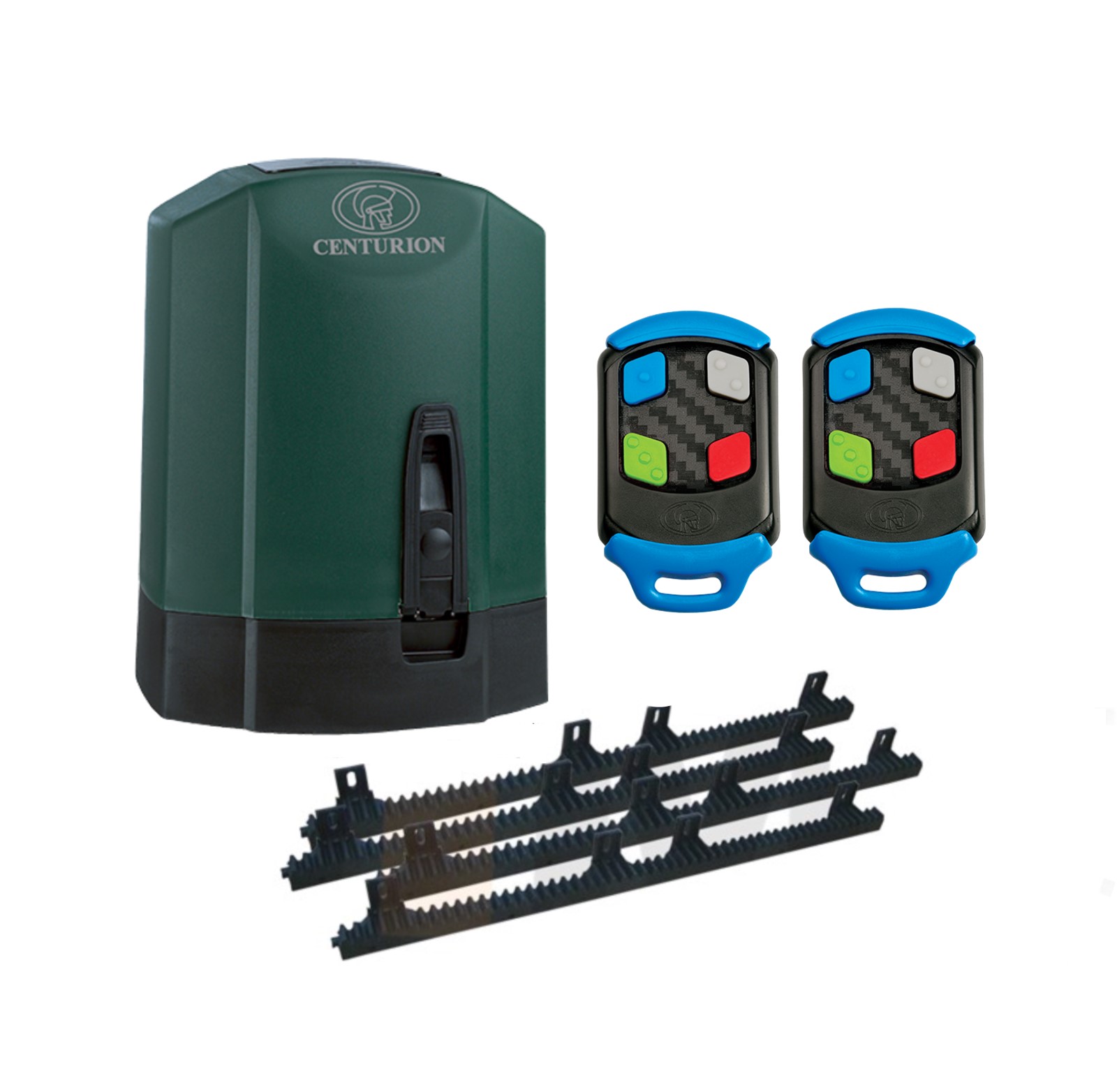

Kit Contains:

– Centsys D10 1000kg Industrial Operator 230V

– Standard foundation plate

– 2 x 4 Button Nova Transmitters

– 4 x 1m Rack with mounting hardware

– 2 x 7.2Ah Battery

Additional Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.

Optional Accessories

– Solar Panel

– Photocell sensor (Wired / Wireless)

– Keypads (Wired / Wireless)

– G-Ultra

Technical specifications:

Input Voltage	220V – 240V AC
Current Consumption	4A
Motor push force – starting	40kgf
Motor push force – rated	30kgf
Gate length – maximum	100m
Manual Override	Lockable with key release
Gate mass (maximum)	1000 kg
Gate speed (varies with load)	22 – 26m/min
Receiver Frequency	433MHz
Degree of Protection	IP55
Operating ambient temperature	-15°C to +50°C
Dimensions	303mm wide x 231mm deep x 432mm high
