BFT VIRGO SMART BT A 20 Articulated Single Swing Gate Motor Kit
Shop By Categories
BFT VIRGO SMART BT A 20 Articulated Single Swing Gate Motor Kit
SKU:
BFT-P930129 00002
BFT
$ 721.20
Secure Payment
Details

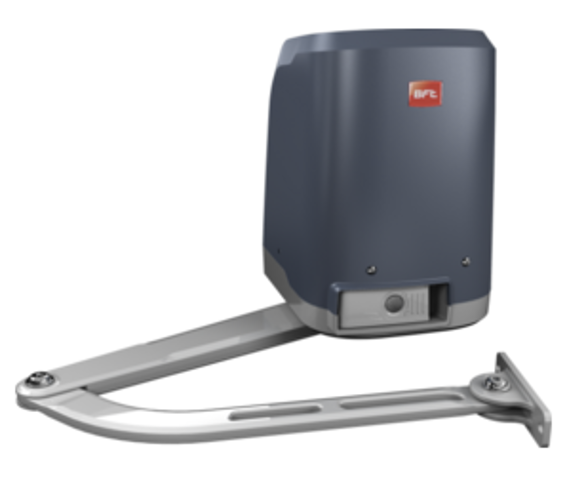

BFT VIRGO SMART BT A 20 Articulated Single Swing Gate Motor Kit
Electromechanical Operator with articulated arm for residential use, for swing gate leaves of up to 2m and 200Kg. Ideal for any installation requirements, makes it easy to solve problems linked to large pillars thanks to the lever system. Operator-integrated control unit, limit switch and mechanical stops.
Kit Includes:
– 1 x B&D “VIRGO” 24V Swing Gate Operator
– 1 x Control Box
– 2 x Remotes
– Installation Accessory Pack
– Installation Instructions
Features:
– Soft/Start, Soft/Stop
– U-Link Technology
– Dynamic Path Tracking
– ER Ready
– EE Link
Technological Specifications:
| Control Unit | Thalia |
| Board Power Supply | 230V |
| Motor Voltage | 24V |
| Power Consumption | 110W |
| Max. Width of Door/Gate Wing | 2m |
| Max. Weight of Door/Gate Wing | 200Kg |
| Maximum Angle | 120Deg |
| Cycle Time | 14s |
| Type of Limit Switch | Electromechanical |
| Slowdown | Yes |
| Locking | Mechanical |
| Release | Personal Key |
| Impact Reaction | Electronic Torque Limiter |
| Frequency of Use | Semi-Intensive |
| Protection Rating | IP44 |
| Environmental Conditions | -20 To +55 Deg C |
