BFT ELI 250 BT Double Underground Swing Gate Opener
BFT
$ 3,891.00
Secure Payment
Details
BFT ELI 250 BT Single 24V Underground Swing Gate Motor Opener Kit – 400kg
For residential Swing gates weighing up to 400kg / 3.5m Long
ELO 250 BT: In-ground Irreversible electromechanical operator 24 V for swing gates weighing up to 400 kg and 3.5 m long.
Advantages:
- Simplified and Intuitive Wiring: the new Merak control units have standardised terminal blocks with different colours depending on the input and output function blocks for maximum ease of connection of operators and accessories.
- Obstacle Recognition: the D-Track torque management and control system ensures maximum safety for people and property, as well as facilitating certification of the system.
- Interconnectivity: the Merak control unit is native to U-link protocol for control of the operator via Bluetooth, 485 serial network or TCP-IP network.
Main Features:
- Magnetic Limit Switches: this type of limit switch ensures safe and precise installations in any ambient condition
- Control Unit with Programming Display: the Merak control unit with programming display with preprogrammed scenarios helps the installer in the programming display with preprogrammed scenarios helps the installer in the programming phase; the control unit is arranged in an oblique way, to facilitate reading and making the settings.
- Front Screws: this arrangement of the casing screws offers ease and convenience during installation and maintenance, even when there is limited space.
- Release Lever with Personalised key: the release lever simplifies motor release and the personalised key ensures its uniqueness, for better safety.
Specifications:
- Control Unit: THALIA
- Max Leaf Length: 3.5m
- Max Leaf: 400 kg
- Power Supply: 24V
- Power Input: 175 W
- Maximum Angle: 120°
- Slowdown: Yes
- Cycle Time: 15 sec
- Locking: Mechanical
- Limit Switch: Magnetic
- Release: Yes
- Use: Intensive
- Environmental Conditions: -20 °C to +55 °C
- IP Rating: IP67
- Impact reaction: D-Track
- Operator Weight: 10kg
- Operator type: Swing Gate with Underground Electro-mechanical Operator

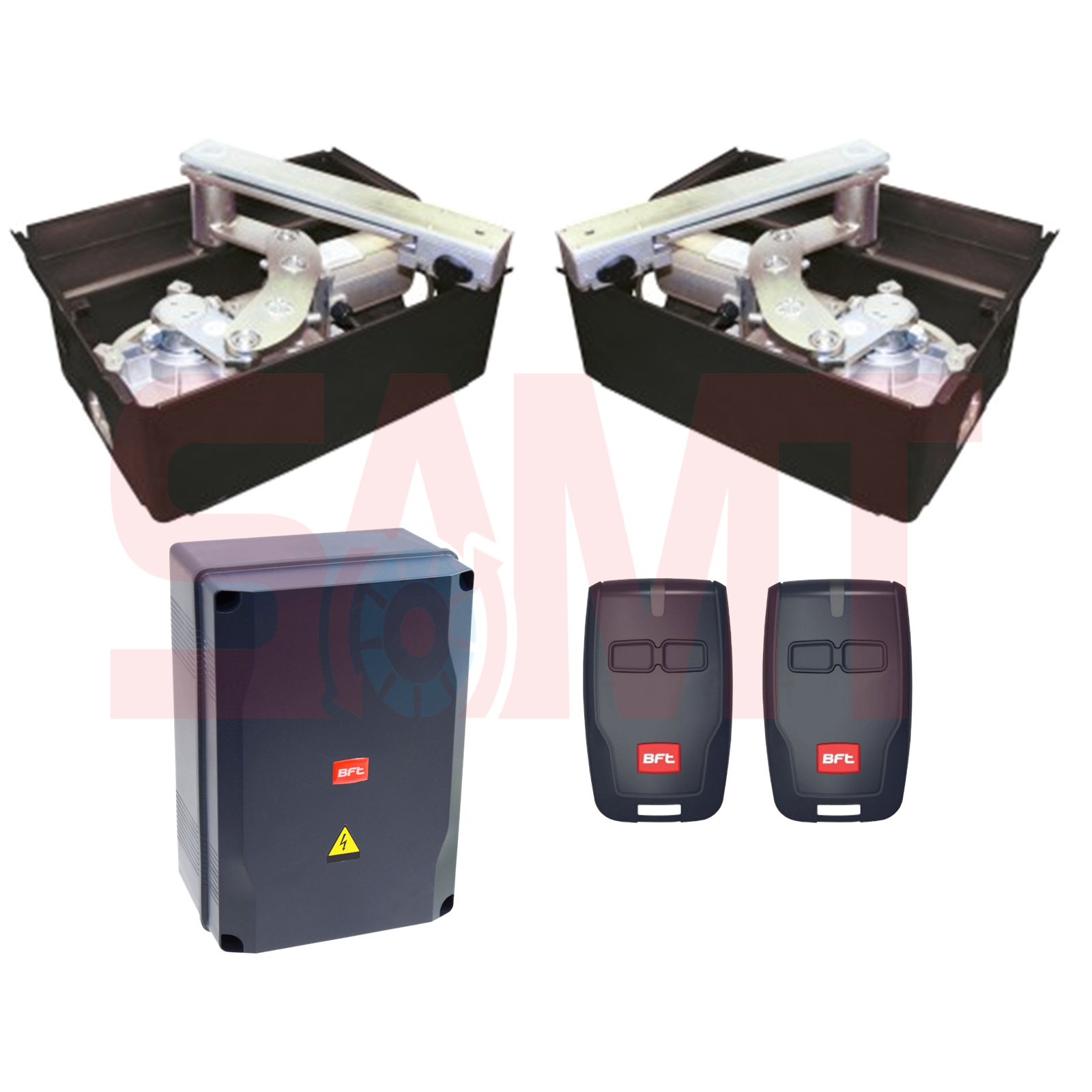

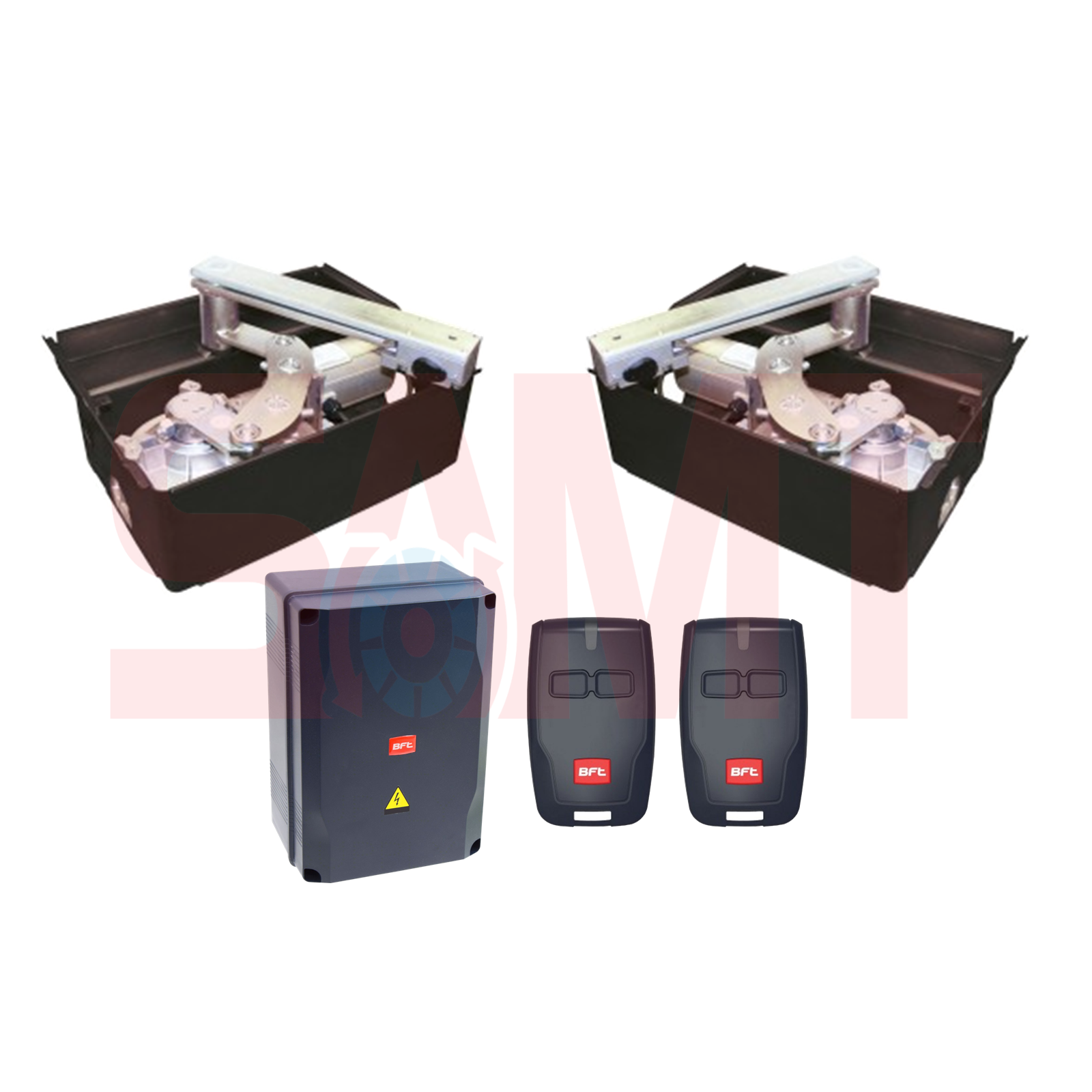

Kit Contains:

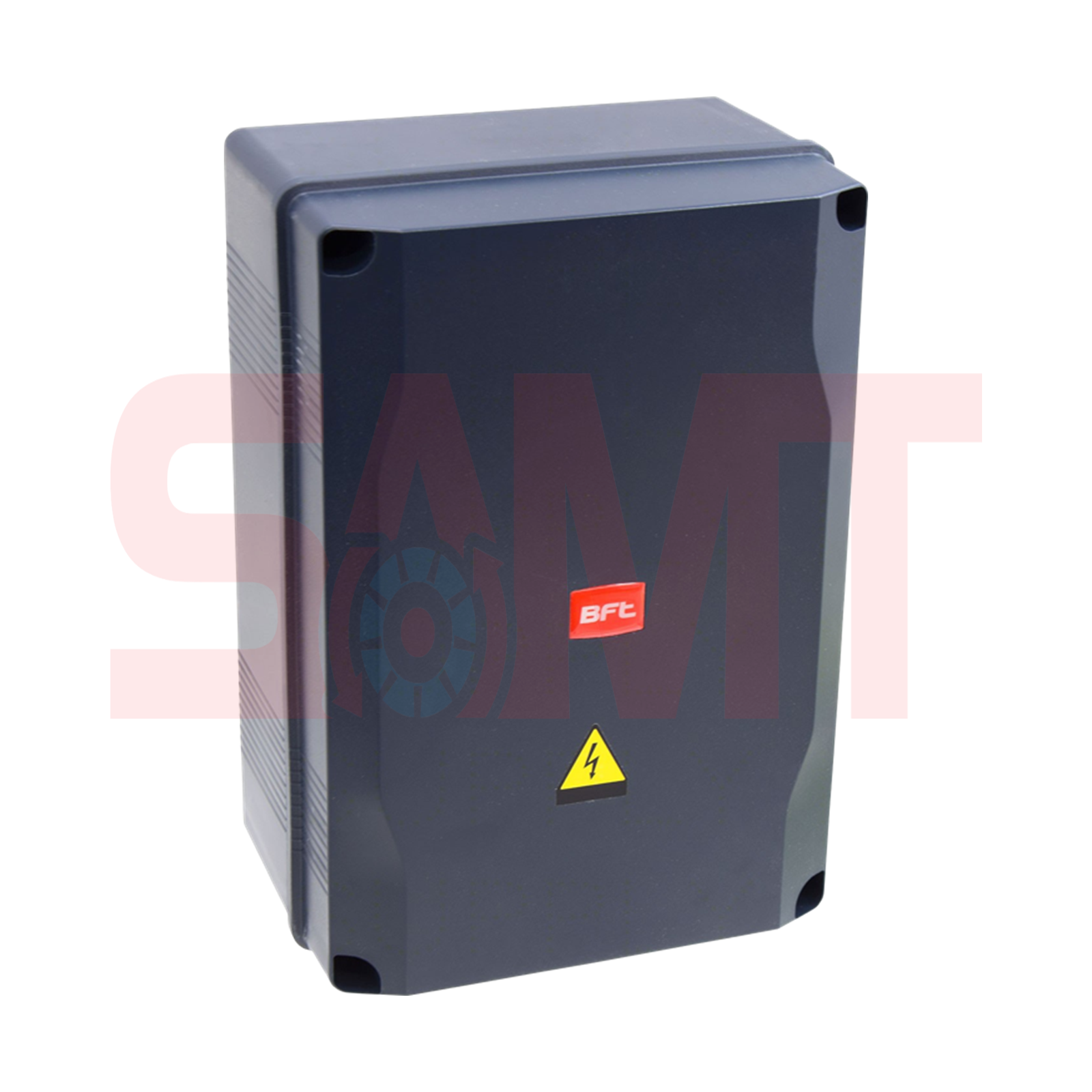

- 1 x THALIA Control Board Unit

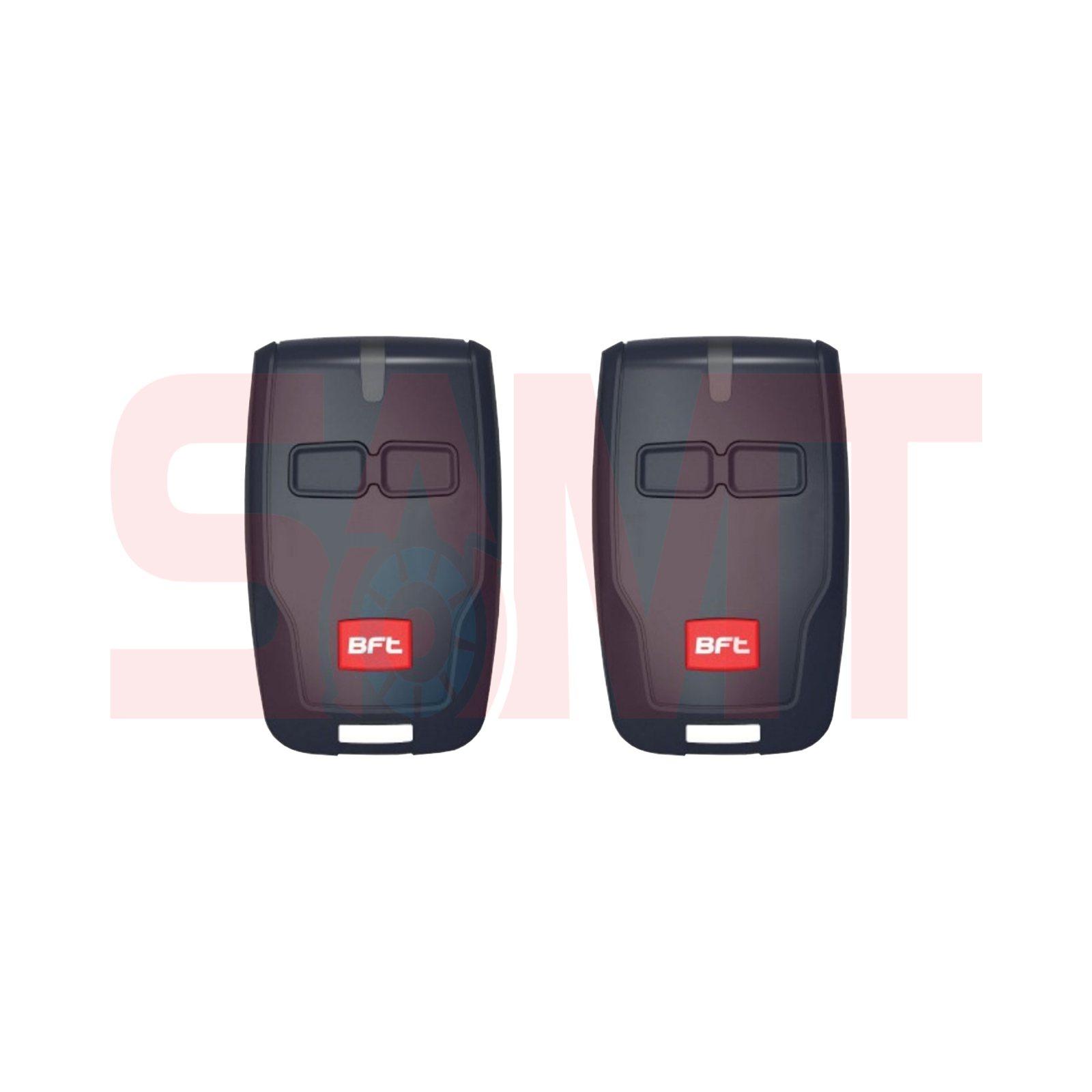

- 2 x BFT Mitto 2 Channel Transmitters
- 2 x BFT ELI 250 BT Operator
